WAGGON™ - Hydraulic Series

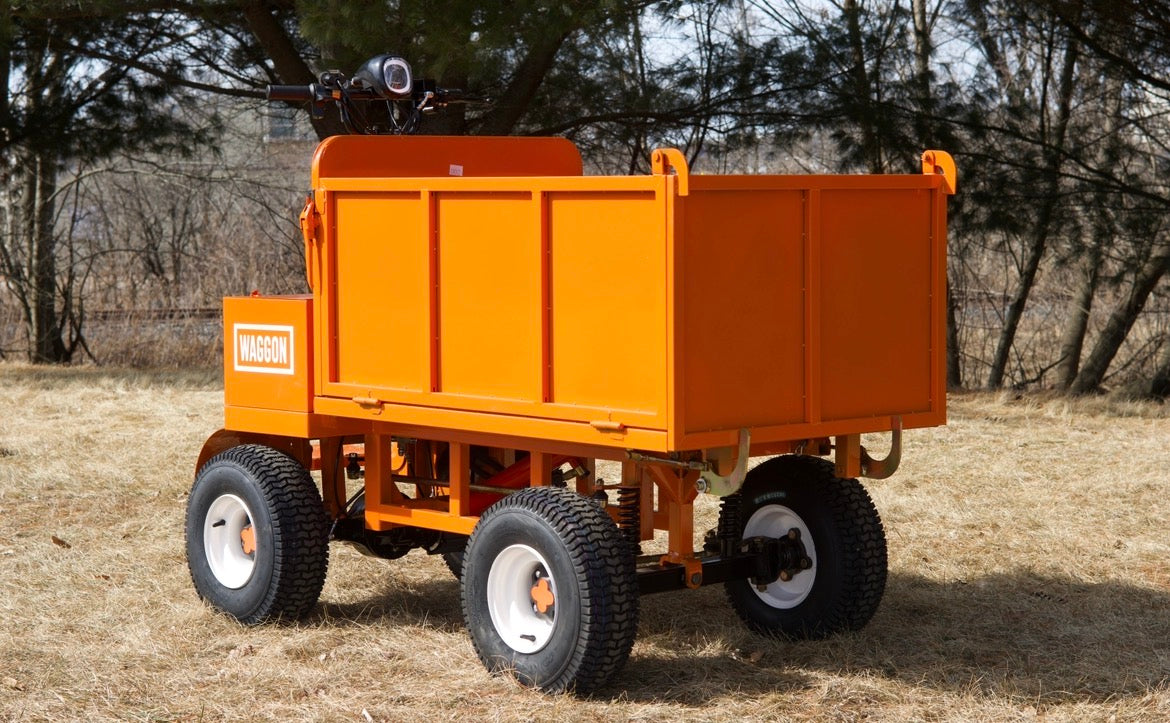

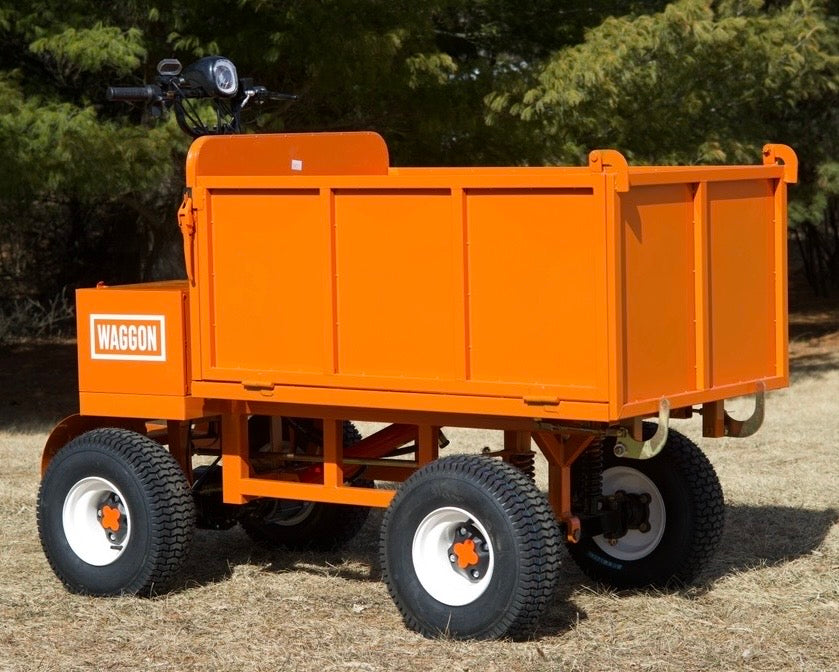

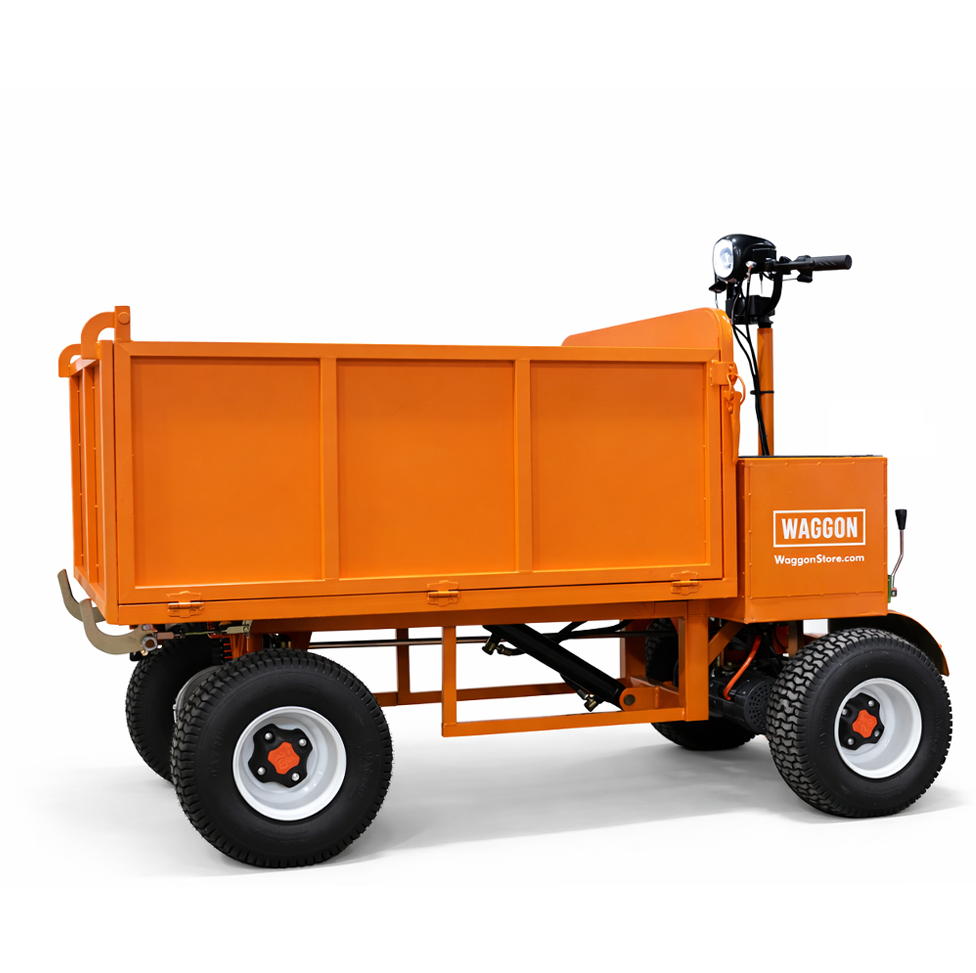

WAGGON™ Hydraulic Series  - Electric Dump Cart

The WAGGON™ Hydraulic Series is built on our signature frame and engineered and supported exclusively through the WAGGON™ brand and dealer network. Designed for high volume material movement, it integrates a hydraulically assisted steel bed with our 1200W drive system. Backed by our industry-leading 2-year warranty.

The Hydraulic Series represents a new category in equipment — combining compact size, electric operation, , ride-on design and integrated hydraulic dumping into a single machine. Until now, this level of capability required larger equipment or manual labor. WAGGON™ created the Hydraulic Series as a solution for the work no other machine handles this efficiently at a price point that makes sense.

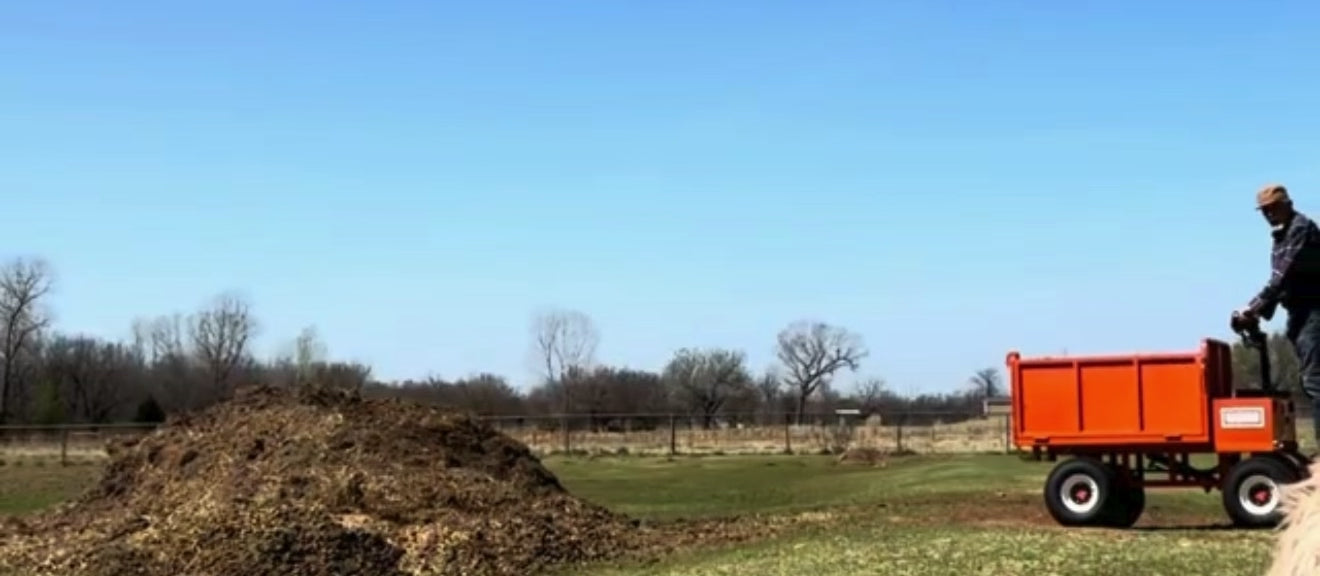

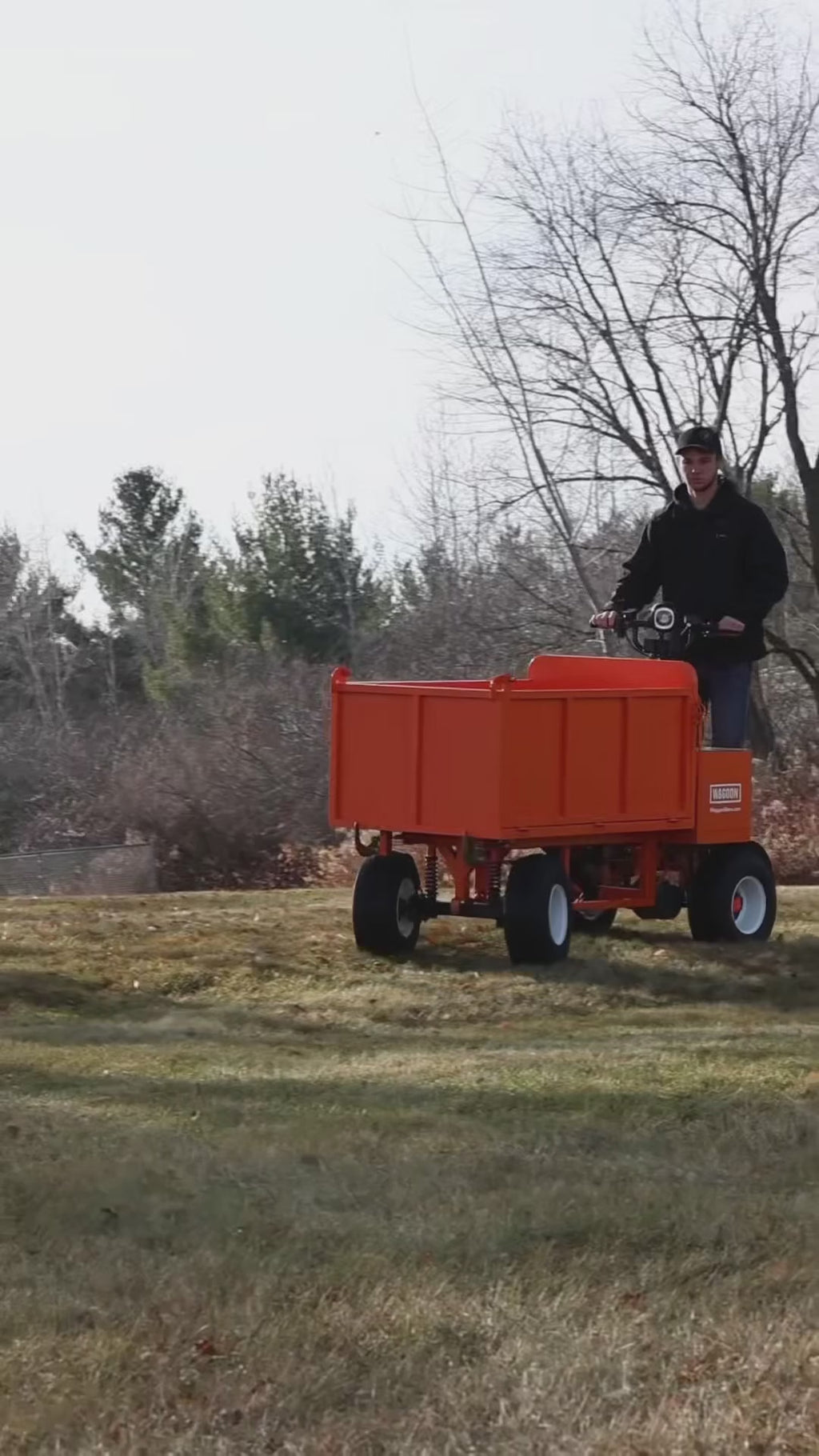

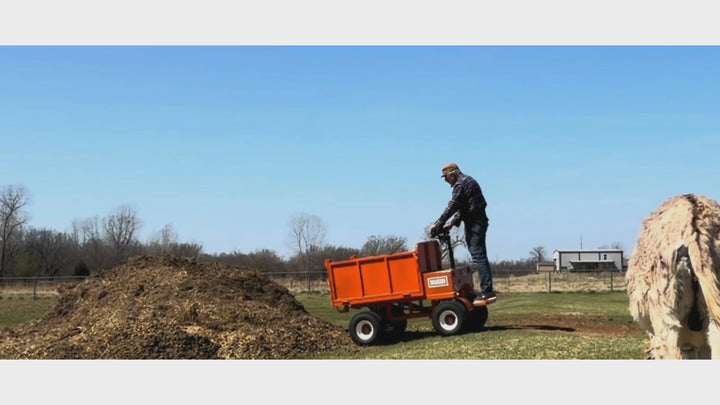

The Hydraulic WAGGON™ performs exceptionally well in demanding agricultural, landscaping, industrial, and property applications. It delivers controlled dumping power at the push of a button. Serving as a versatile alternative to powered wheelbarrows, manual carts, dollies, and UTVs. It is perfectly sized to fit in spaces small tractors can't.

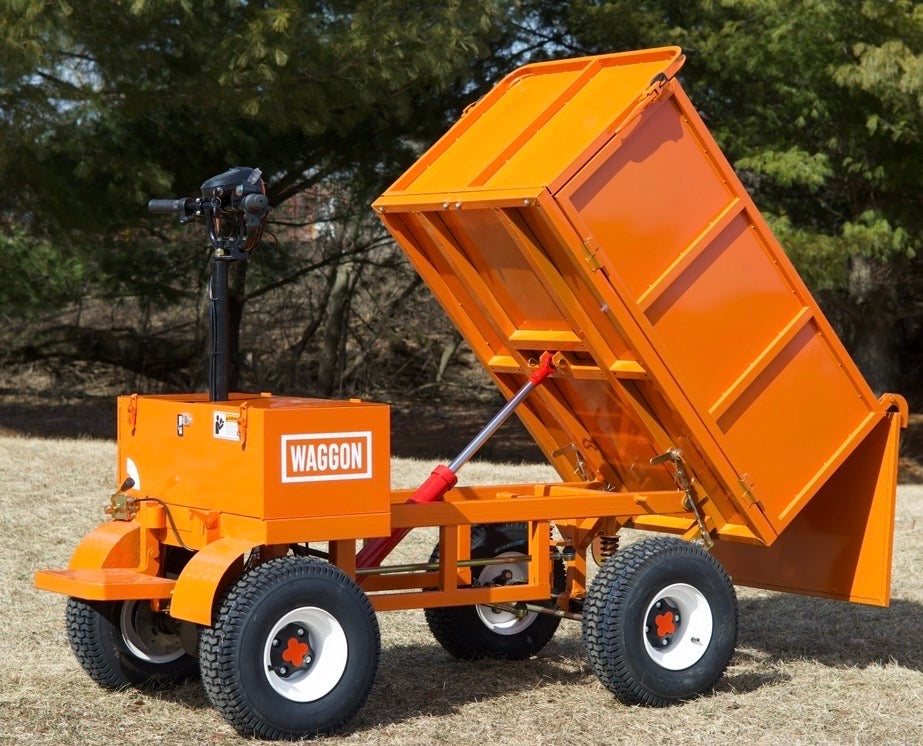

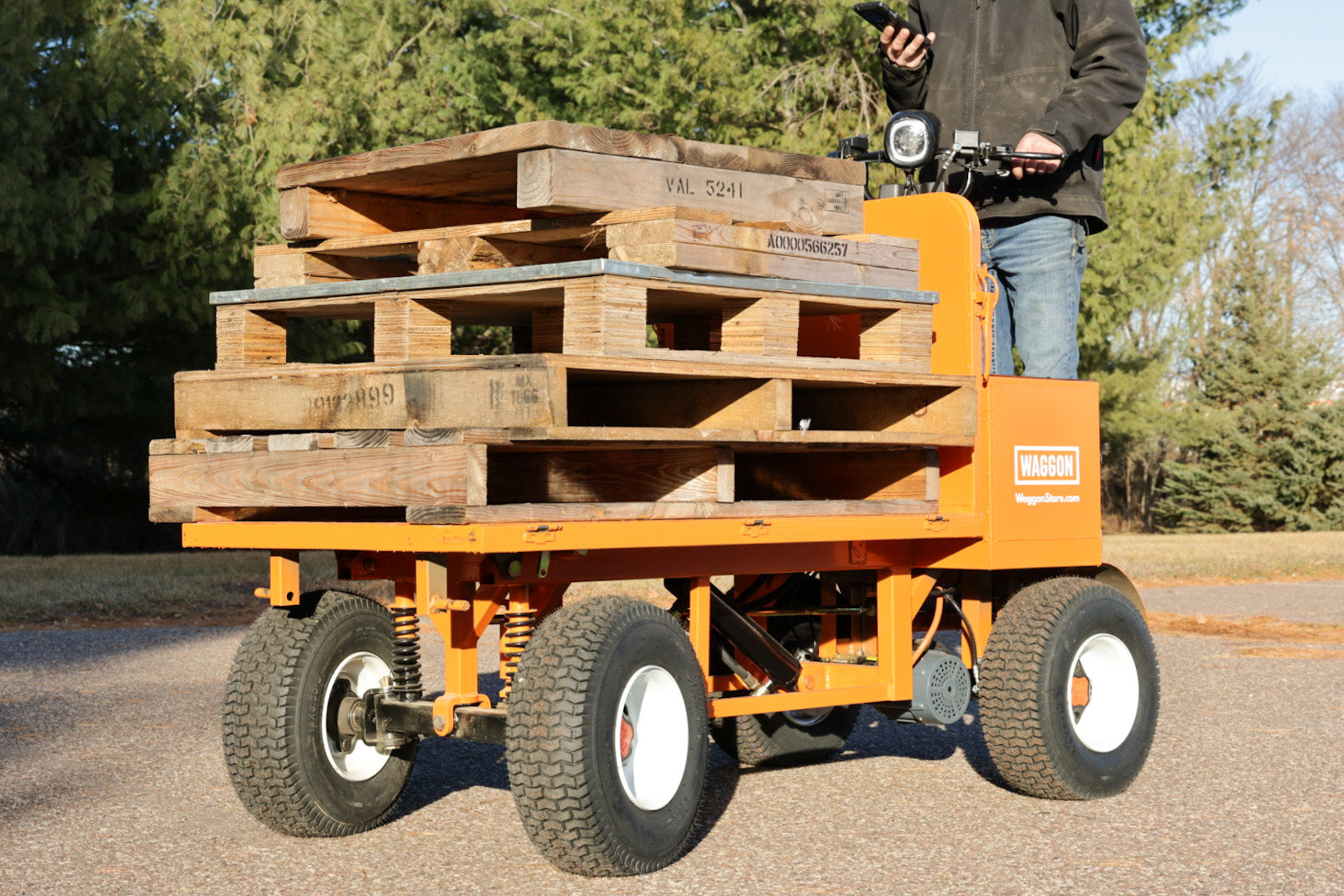

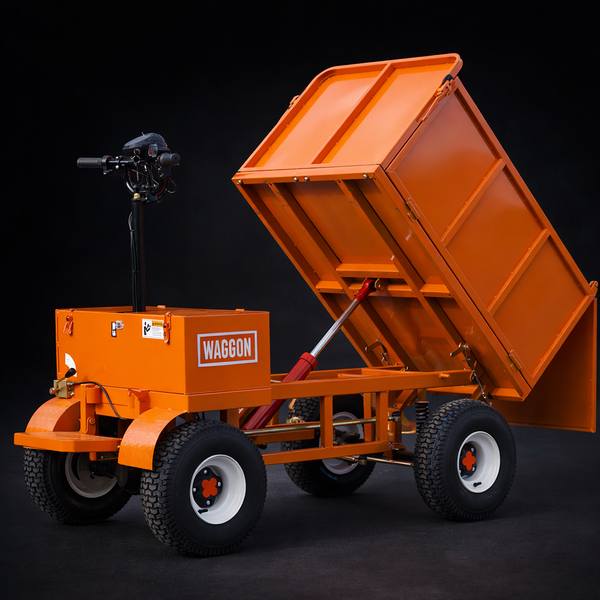

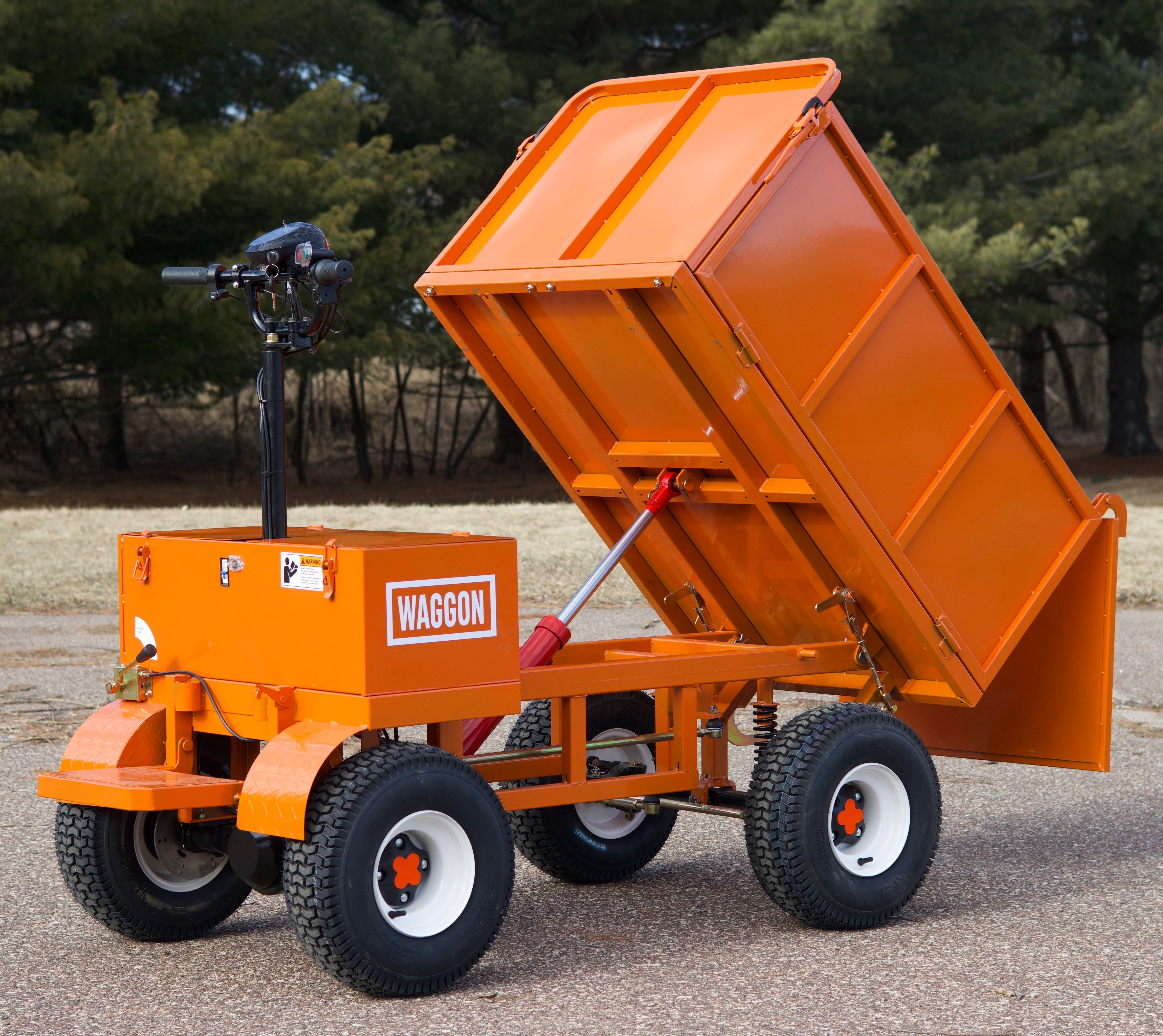

The Hydraulic WAGGON™ is rated to carry up to 1,000 lbs on a steel cargo bed. The hydraulic system provides controlled, push-button dumping, while simple controls, forward and reverse speeds, stable handling, and an all-electric drivetrain make it consistent and practical for both indoor and outdoor operation.

Key Features

Load Capacity: 1,000 lbs — approximately 0.6 cubic yards (mulch equivalent)

Range & Speed: 10+ miles / 4-6 hours of run time per charge, top speed 15 mph

• Transmission: High/Low range with selectable Low, Medium, High speeds in each
• Motor: 1,200W brushless
• Battery: 60V sealed lead-acid with included 110V charger (approx. 4-5 hour charge)

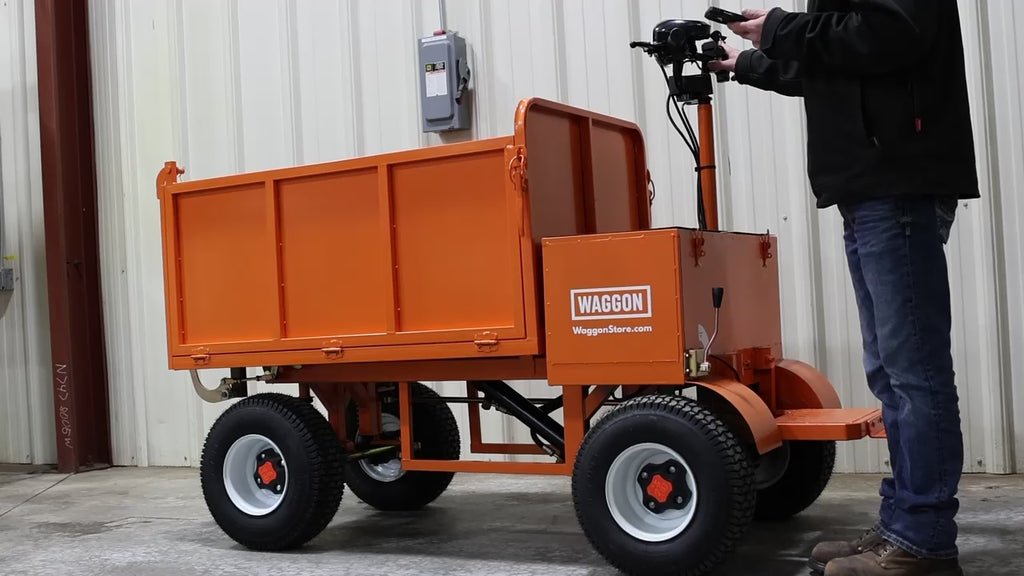

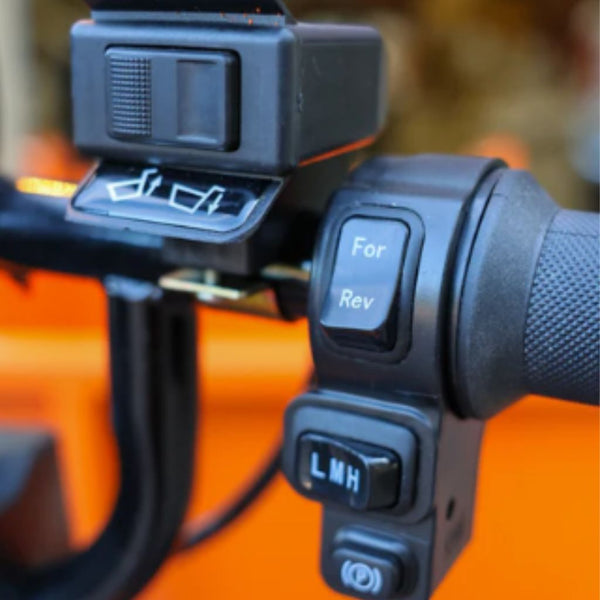

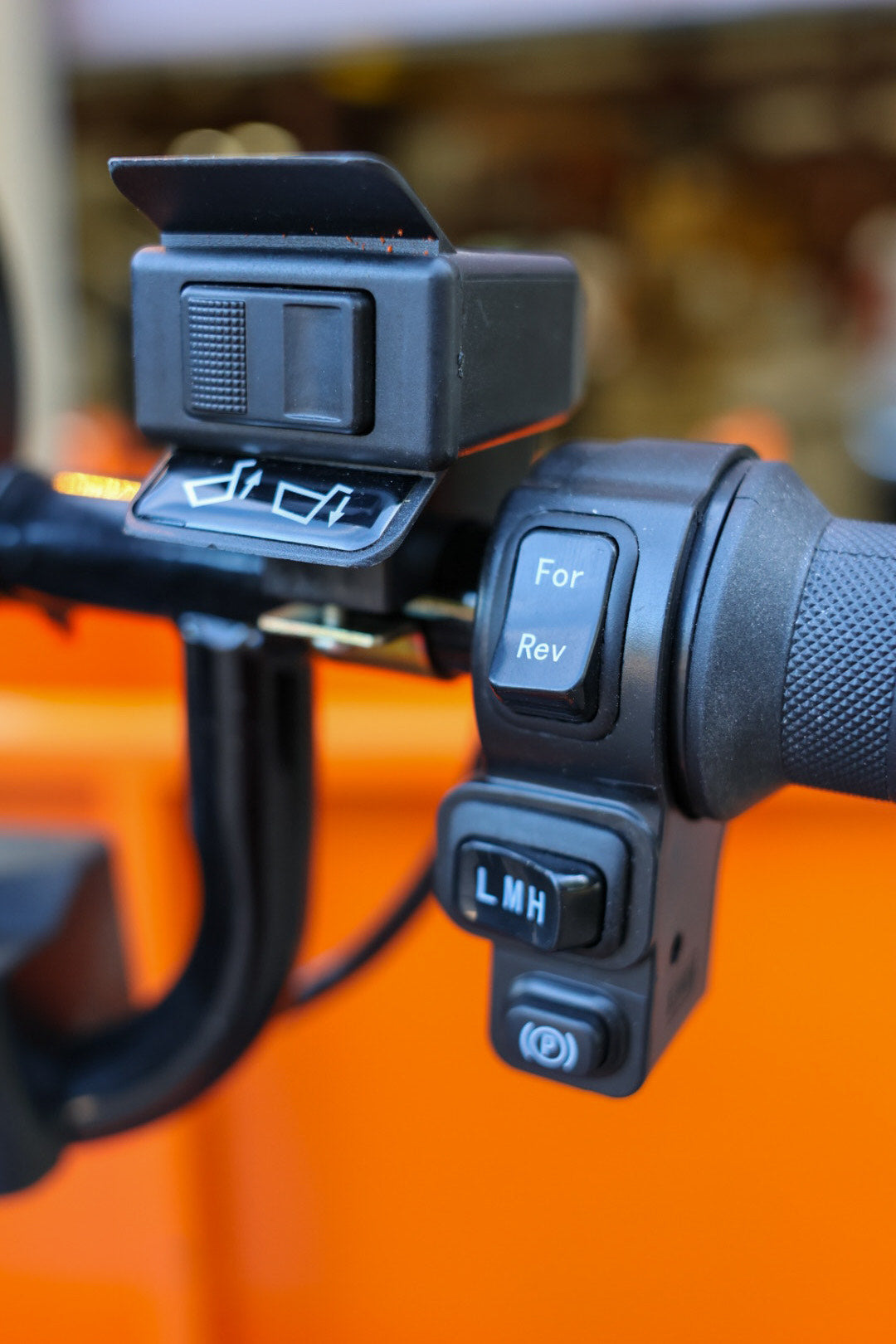

• Operation: Twist throttle with forward/reverse control; hydraulic-lift button for dump bed operation.
• Braking: Disc brakes for reliable stopping power
• Lighting & Controls: Built-in headlight, battery gauge, and horn

2 Year Limited Warranty: Coverage on manufacturing defects under normal use. Service support is provided through Waggon with replacement parts available.

Dimensions

•  Overall: ~70” L × ~34” W
•  Dump Bed: 45” L × 31.5” W × ~20” H
• Weight: 550lbs

Ships fully assembled on LTL Freight

Current Lead Time 2-3 Weeks
